Tableau de gril de Hibachi
Created with Pixso. Rectangular Teppanyaki Grill Table with 20mm Thick Heating Plate and 600x400mm Cook Area

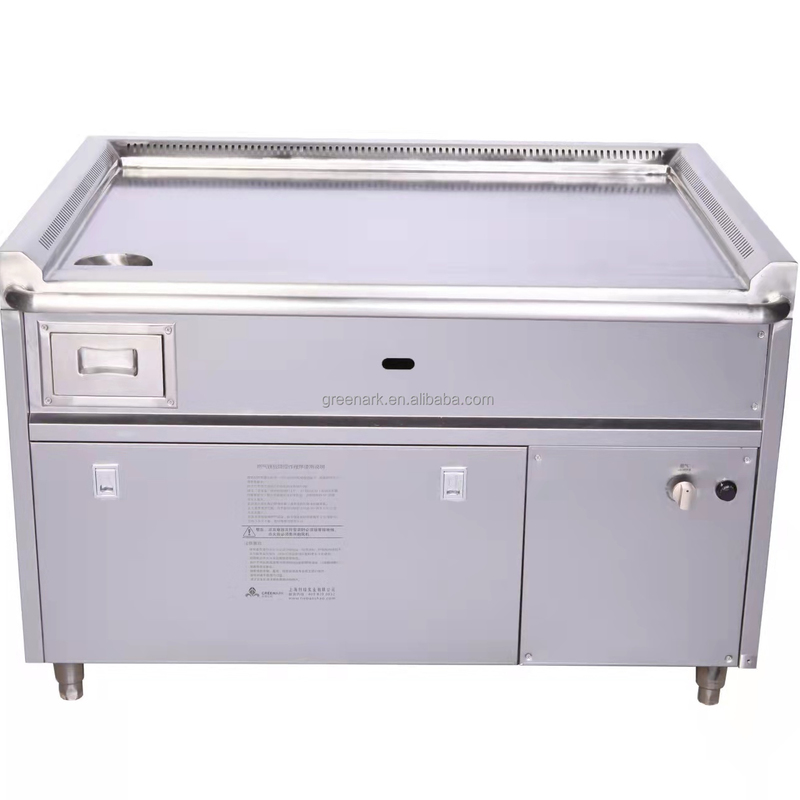

Rectangular Teppanyaki Grill Table with 20mm Thick Heating Plate and 600x400mm Cook Area

Nom De Marque: greenark
Numéro De Modèle: CL-CDGN
Nombre De Pièces: 1
Informations détaillées
Lieu d'origine:
Shanghai, Chine
Couleur:
acier inoxydable
Source d'énergie:
Gaz
Matériel:
Acier allié spécial de qualité alimentaire, acier inoxydable 304
Tension:
220-240 V, 380 V
Pouvoir:
8000w
Méthode de chauffage:
Gaz, Tube Électrique Et Induction
Forme:
Rectangle/cercle/demi-cercle/ovale/forme d'éventail/forme de U/forme d'arc
Zone de cuisson principale:
450*400mm ou 600*400mm
Dimension de gril:
1600*850*800mm
Épaisseur de la plaque de chauffage:
20 mm
Épaisseur du panneau de fonctionnement:
1,0 mm
Épaisseur d'admission d'air:
1,5 mm
Radiations électromagnétiques:
18K-35K
Efficacité du purificateur des fumées:
93 %-97 %
Consommation de gaz:
GPL 0,29 m3/h (0,6 kg), gazoduc 0,8 m3/h
Mettre en évidence:

20mm Thick Heating Plate Teppanyaki Grill Table

,

600x400mm Cook Area Teppanyaki Grill Table

,

Rectangular Teppanyaki Grill Table

Description du produit
Rectangular Stove Top Gas Heating Ways Teppanyaki Grill Japanese Hibachi Table With Ventilation System
Product Overview

The GREENARK Electromagnetic (Induction) Teppanyaki Grill Table is the most attractive and valuable series in the CHUANGLV product line. Designed with customer requirements as the top priority, this professional-grade equipment delivers exceptional performance and durability.

Key Features
  • Exclusive electromagnetic system design by Chuanglv Group - the only manufacturer in China producing electromagnetic plates and motors specifically for teppanyaki equipment
  • Premium German Infinon power module and NEC rectifier components
  • Circuit board materials conform to UL and Rohs certification standards
  • 32-bit DSP digital processing unit for precise temperature control
  • 6-layered heat resistant insulation for extended motor life
  • Electromagnetic radiation levels (18k-35k) well below European standard limits (100k)
  • Constructed with German 304 stainless steel body and 20mm thick special alloy steel heating plate
  • One-piece unibody design prevents deformation and discoloration
  • Optional built-in high temperature resistant air blower (low noise operation)
  • Optional Taiwan Electrostatic Fume Purifier (93%-97% efficiency for particles >0.1mm)
  • Certifications: ISO 9001-2008, CE, CSA (UL certification in process)
Technical Specifications
Item Specification
Heating Electrical Tube and Induction
Material Stainless Steel
Shape Rectangle/circle/semi-circle/oval/fan shape/U shape/arch shape
Main Cook Area 450*400mm or 600*400mm
Exhaustion Optional built-in air blower & fume purifier
Application Outdoor barbecue, restaurant, hotel, food plaza, buffet car
Cookable Food Beef, mutton, chicken, fish, shellfish, vegetable, rice, noodle
Packaging Standard Shipping Wooden Case
Product Configuration
Rectangular Teppanyaki Grill Table with 20mm Thick Heating Plate and 600x400mm Cook Area 0 Rectangular Teppanyaki Grill Table with 20mm Thick Heating Plate and 600x400mm Cook Area 1

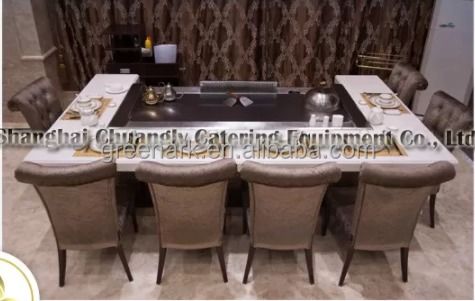

U-shape configuration
Rectangular Teppanyaki Grill Table with 20mm Thick Heating Plate and 600x400mm Cook Area 2
Oval shape configuration
Frequently Asked Questions
Why choose Chuanglv GREENARK Teppanyaki?

A. Premium construction with German 304 stainless steel body and 20mm thick special alloy steel heating plate - one-piece unibody design prevents deformation and discoloration.

B. High-quality components including operation panel, waste container, and 1.5mm mirror surface stainless steel air inlet.

C. Precision manufacturing using imported intelligent processing machines for cutting, bending and polishing.

D. Advanced electromagnetic system with German components, UL/Rohs certified materials, and low radiation levels.

E. Optional fume purification system with 93%-97% efficiency for particles >0.1μm.

Successful Projects
Rectangular Teppanyaki Grill Table with 20mm Thick Heating Plate and 600x400mm Cook Area 3

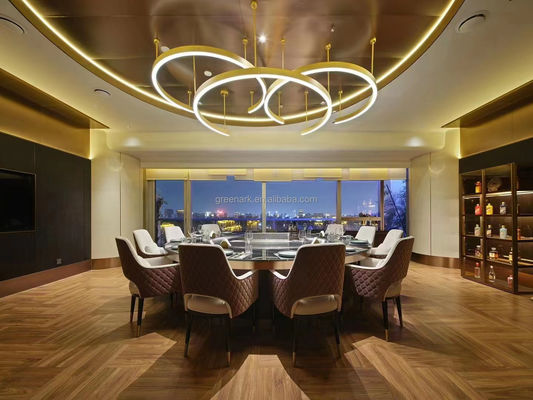

Project in Thailand
Rectangular Teppanyaki Grill Table with 20mm Thick Heating Plate and 600x400mm Cook Area 4
Project in India
Rectangular Teppanyaki Grill Table with 20mm Thick Heating Plate and 600x400mm Cook Area 5
Project in Russia
Company Profile
Rectangular Teppanyaki Grill Table with 20mm Thick Heating Plate and 600x400mm Cook Area 6

Established in 1992, Shanghai Chuanglv Catering Equipment Co., Ltd has grown into the leading manufacturer and exporter of teppanyaki grill tables in China with premium products, rich experience and excellent service. The company operates under the GREENARK brand for teppanyaki equipment and OVEN GRANDMASTER for commercial ovens.

With 26 years of research and development in teppanyaki equipment, Chuanglv has partnered with more than 85% of China's teppanyaki equipment owners, including major chain stores. GREENARK Teppanyaki Equipment has been exported to over 40 countries across Europe, Africa, North America, South America, and Australia.

The company holds CE certification for Europe and CSA for North America, with additional certifications in progress. Chuanglv is committed to providing the highest quality teppanyaki equipment to customers worldwide.
